For Furniture

Guide for Application of Gas spring & Step-Spring Bracket

E-Type

E-Type of Gas Spring & Step Spring

Application to Clip-type Plastic Socket

Pin is applied to the end part of cocket, so it is easily attachable and detachable.
For the side panel and the door-side bracket, various type of steel brackets may be selected.

L-Max	Color	Piston Rod	Cylinder	Force
180mm	Gray	Nitriding surface Treatment	Gray Liquid Painting	· GAS SPRING (kgf/cm2) = 5, 6, 7, 8, 10, 12, 15 · STEP SPRING (#) = 10, 15, 20, 25
180mm	Black	Nitriding surface Treatment	Black Liquid Painting
248mm	Gray	Nitriding surface Treatment	Gray Liquid Painting
248mm	Black	Nitriding surface Treatment	Black Liquid Painting

Bracket for fixing the side panel
	P-type bracket This is universal type attacked to gas spring adn is easy to install and operate. Mounting Position Application table for each door's weight
	Circle-shaped bracket It is provided separately from gas spring and can be installed to perate easily. It is fixed, durable and universal type. Mounting Position Application table for each door's weight
	Ø 9 Circle-shaped bracket It is used at construction operation and on the side. The inductie bearing is needed. Mounting Position Application table for each door's weight
	Ø 10 Circle-shaped bracket It is used at construction operation and on the side. The inductive bearing is needed. Mounting Position Application table for each door's weight

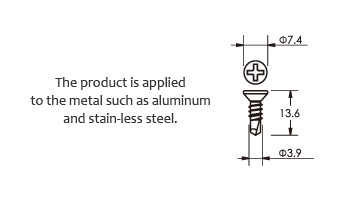

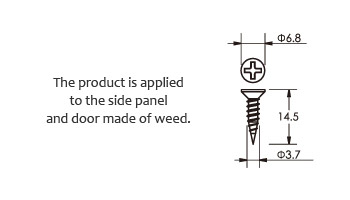

Bracket for fixing the side panel
	L bracket It is the most universal type in bracket.
	L-long hole bracket It is used at construction operation and on the side.
	LR bracket It is used at construction operation and on the side. The inductive bearing is needed.

The brief of the furniture gas spring bracket

1. The bracket can be chosen between cylinder and rod depending on the installation location.
2. There are three types of cylinder brackets. L-shaped bracket is most used. Cylinder bracket is provided attacked to the body.
3. There are four types of rod brackets: Flat brackets and Circle no-bearing bracket are most used. The flat bracket is provided attached to the body so it is convenient and portable when it is installed in large quantity. Circle no-bearing bracket is provided separately from the body so that it can be precisely installed in exact location and is more durable.
4. Circle Ø9 and Ø10 bearing bracket are used in apartment construction fields as a profession operational installation and requires pre-contract with the furniture manufacturers.

H-Type

Mounting Position Application table for each door's weight

The brief of the furniture gas spring bracket

1. Gas spring H-shaped plastic socket is installed on the body and mode with plastic materials
2. On the side of the installation area, 15 inductive bearing is required
3. The appearance of gas spring and step spring are identical.

H-Type of Gas Spring & Step Spring

Application to H-type Plastic Socket

Product-fixing bracket attached to the door and the side panel is made of plastic nad one-body type with the product
Induction boring of Ø15 is needed at the side panel.

L-Max	Color	Piston Rod	Cylinder	Force
180mm	Gray	Nitriding surface Treatment	Gray Liquid Painting	· GAS SPRING (kgf/cm2) = 5, 6, 7, 8, 10, 12, 15 · STEP SPRING (#) = 10, 15, 20, 25
180mm	Black	Nitriding surface Treatment	Black Liquid Painting
240mm	Gray	Nitriding surface Treatment	Gray Liquid Painting
240mm	Black	Nitriding surface Treatment	Black Liquid Painting
