For Industrial Use

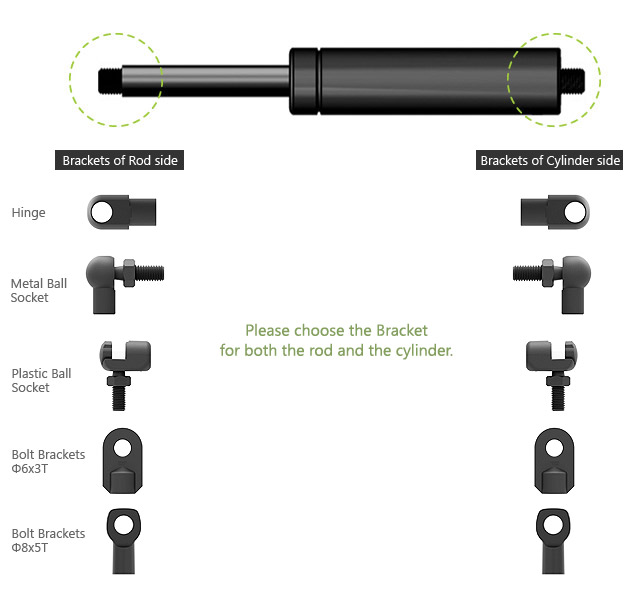

  • Guide for application of the industrial Gas spring End Fittings

    • It is not required to match Brackers of cylinder and road.
    • It is not required to apply Brackets.
    • For more information or extimation, contact the online estimation or product inquiries.

    Bolt Type – End Fitting

    End Fittings : Ø8X10T Hinge

    Cylinder Dia (A) Piston Rod Dia (B) L-Max (C) Stroke (D) Force mm, kgf/cm² ( 1kgf/cm² = 9.8N )
    Ø18 Ø8 180~800 46~356 5~50 · L-Max Range = (Stroke+44)x2 ~ 800
    · Stroke Range = 46 ~ L-Max/2-44
    Ø22 Ø10 180~800 46~356 10~100
    Ø27.4 Ø12.5 180~800 46~356 10~120

    End Fittings : Metal Ball Socket

    Cylinder Dia (A) Piston Rod Dia (B) L-Max (C) Stroke (D) Force mm, kgf/cm² ( 1kgf/cm² = 9.8N )
    Ø18 Ø8 180~800 48~358 5~50 · L-Max Range = (Stroke+42)x2 ~ 800
    · Stroke Range = 48 ~ L-Max/2-42
    Ø22 Ø10 180~800 48~358 10~100
    Ø27.4 Ø12.5 180~800 48~358 10~120

    End Fittings : Plastic Ball Socket

    Cylinder Dia (A) Piston Rod Dia (B) L-Max (C) Stroke (D) Force mm, kgf/cm² ( 1kgf/cm² = 9.8N )
    Ø18 Ø8 180~800 50~360 5~50 · L-Max Range = (Stroke+40)x2 ~ 800
    · Stroke Range = 50 ~ L-Max/2-40
    Ø22 Ø10 180~800 50~360 10~80
    Ø27.4 Ø12.5 180~800 50~360 10~80

    End Fitting : Ø6x3T Bolt Brackets

    Cylinder Dia (A) Piston Rod Dia (B) L-Max (C) Stroke (D) Force mm, kgf/cm² ( 1kgf/cm² = 9.8N )
    Ø18 Ø8 180~800 48~358 5~50 · L-Max Range = (Stroke+42)x2 ~ 800
    · Stroke Range = 48 ~ L-Max/2-42
    Ø22 Ø10 180~800 48~358 10~100
    Ø27.4 Ø12.5 180~800 48~358 10~120

    End Fitting : Ø8x5T Bolt Brackets

    Cylinder Dia (A) Piston Rod Dia (B) L-Max (C) Stroke (D) Force mm, kgf/cm² ( 1kgf/cm² = 9.8N )
    Ø18 Ø8 180~800 50~360 5~50 · L-Max Range = (Stroke+40)x2 ~ 800
    · Stroke Range = 50 ~ L-Max/2-40
    Ø22 Ø10 180~800 50~360 10~80
    Ø27.4 Ø12.5 180~800 50~360 10~80
